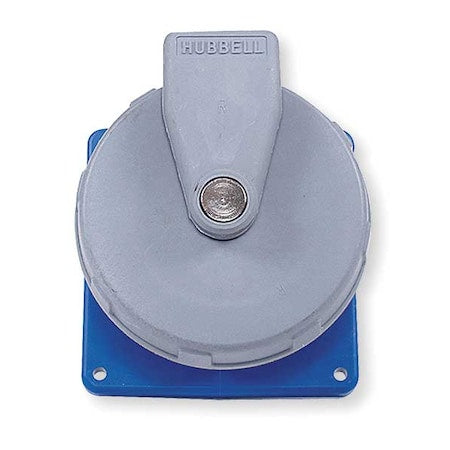

Watertight Pin & Sleeve Receptacle, 30 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue

The HUBBELL IEC Pin and Sleeve Receptacle is an IP67 rated for water ingress protection electrical device suitable for use in industrial settings requiring 30A, 250V AC single-phase connections. Rated for 30A and 250V AC, this single-phase receptacle features a straight connection orientation with screw terminal wiring, supporting wire sizes from #12 AWG to #8 AWG. The unit includes a flanged mounting design and spring-loaded cap with neoprene gasket to maintain moisture resistance, making it suitable for environments where IP67 ingress protection is specified.

Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:

• Current/Voltage Rating: 30A, 250V AC single-phase


• Ingress Protection: IP67 rated for water ingress protection


• Body Material: Zytel 101 nylon thermoplastic housing


• Cord Size Compatibility: Accepts #12 AWG to #8 AWG conductors


• Connection Type: Pressure terminal screws with grounded IEC configuration


• Operating Temperature Range: -40°C to 75°C continuous operation


• Flammability Rating: UL 94 HB or better


• Standards Compliance: CSA C22.2 No.182.1; UL Classified to IEC 60309-1/-2; UL Listed (File E146032)


• Cap Type & Gasket Material: Spring-loaded cover with neoprene gasket
