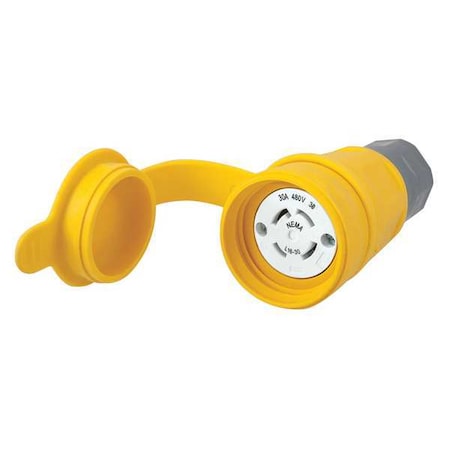

Watertight Locking Connector, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Yellow

The HUBBELL 30A Watertight Locking Connector (L16-30R) is a three-pole, four-wire connector designed for industrial and commercial electrical applications intended for use in environments where watertight properties are specified. Rated for 480V AC and 30 amps, this connector features a thermoplastic elastomer body with a smooth surface that minimizes debris collection points and simplifies washdown processes. The unit includes stainless steel hardware and connection points, with a strain relief nut designed to seal directly on the body to further reduce contamination risks.

Key Features of the HUBBELL 30A Watertight Locking Connector:

• Body/Housing Material: Thermoplastic elastomer with Valox components for durability


• Bushing Material: Black elastomer bushing


• Contact Material: Nickel-plated brass contacts


• Cord Size Compatibility: Accepts cords from 0.375 in to 1.125 in diameter


• NEMA Enclosure Rating: Rated NEMA 4, 4X, 6, 6P, and 12; IP69K moisture resistance


• Operating Temperature Range: -40°C to +60°C continuous use


• Wire Size Range: Supports wire sizes from minimum of 18 AWG up to maximum of 8 AWG


• Connection Type: Screw terminals with standard wiring style; straight orientation; grounded design


• Corrosion/UV/Moisture Resistance: Exposed materials are UV stabilized and corrosion resistant for demanding environments


• Industry Standards Compliance: Meets NEMA WD-1, WD-6, ANSI standards; UL498 current interrupting rated; UL94 HB flammability rating
