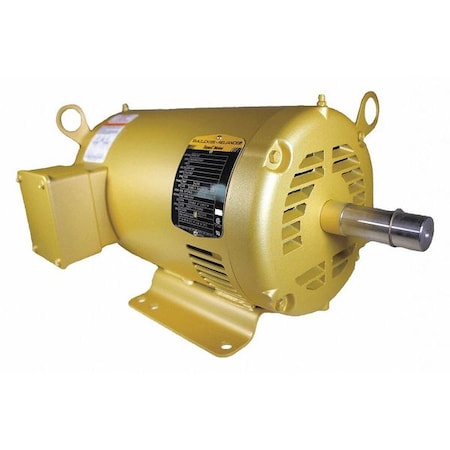

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 208-230/460V AC Voltage, 1750 rpm Nameplate RPM

The BALDOR-RELIANCE - EM3218T is a General Purpose Motor, classified under the 3-Phase AC Motors category. This motor is designed to convert electrical energy into mechanical energy for use in various industrial and commercial applications. It's versatile enough to be used across different sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - EM3218T General Purpose Motor:

• CC Number: The unique identifier assigned by EASA, CC010A classifies this motor based on its design and performance characteristics.
• Duty Cycle: This motor has a continuous duty cycle, suggesting it is designed for ongoing operation within specified conditions.
• Frame: The 184T frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility.
• Full Load Amps: The product draws a maximum current of 13.2/6.6 A when operating at its full capacity within the provided specifications.
• Green Certification or Other Recognition: NEMA Premium(R) Rated acknowledging that it meets certain environmental and energy efficiency standards.
• Inverter Rated: Yes – signifies that it can be powered by a variable frequency drive allowing precise control over speed and torque
• Max. Ambient Temp.: Rated for operation up to an ambient temperature of 40 Degrees C under normal usage and within specified guidelines."
