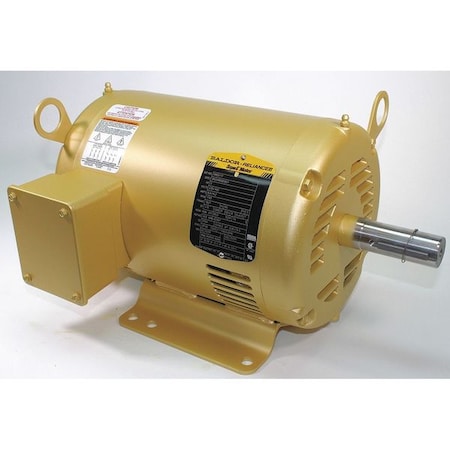

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM

The BALDOR-RELIANCE - EM3211T is a General Purpose Motor, classified under the 3-Phase AC Motors category. This motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It converts electrical energy into mechanical energy to operate various types of machinery, demonstrating its versatility across different sectors from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - EM3211T General Purpose Motor:

• CC Number: The unique identifier CC010A assigned by EASA classifies this motor based on design, specifications, and performance characteristics.
• Duty Cycle: This motor is designed for continuous operation in industrial applications.
• Frame: The 182T frame houses and supports internal parts conforming to standard specifications for compatibility.
• Full Load Amps: Draws maximum current of 8.4/4.2 A when operating within its rated capacity.
• Green Certification or Other Recognition: NEMA Premium(R) Rated indicating it meets environmental and energy efficiency standards.
• Inverter Rated: Yes - compatible with a variable frequency drive for potential control of speed and torque
• Nominal Efficiency: With a nominal efficiency rate of 89.5%, it is intended to convert electrical power into mechanical power under specified conditions
