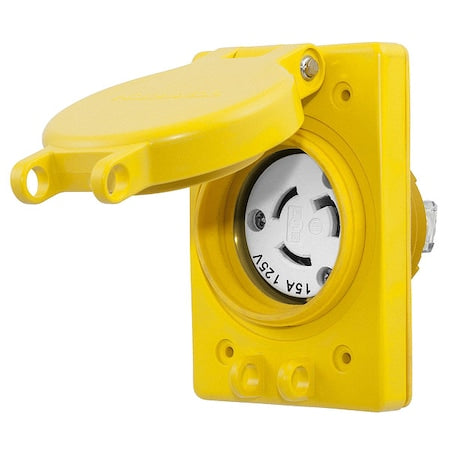

Watertight Flanged Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount

The HUBBELL 15A Watertight Locking Receptacle is a flanged, flush-mount electrical device intended for use in industrial environments. Including a flip-up cover and an impact-resistant body, this receptacle accommodates NEMA L5-15R configurations and supports single-phase, 2-pole, 3-wire circuits at 125V AC. It can be installed in locations requiring moisture resistance and durability.

Key Features of the HUBBELL 15A Watertight Flanged Locking Receptacle:

• Current/Voltage Rating: Rated for 15 amps at 125V AC


• NEMA Configuration: L5-15R locking type with polarized design


• Mounting Type: Flush mount with rectangular flange


• Casing Materials: Impact-resistant PBT body; thermoplastic elastomer housing and insulation; corrosion-resistant metallic components


• Cover Type: Flip-up lid is designed to limit water ingress when closed


• Wire Connection: Screw terminals accept #18 AWG to #10 AWG wire sizes


• NEMA Enclosure Ratings: Meets NEMA types 3R, 3RX, 4, 4X, 6, and 6P requirements for water and dust ingress protection


• IP Rating: IP69K rated for high-pressure washdown environments


• Operating Temperature Range: -40°F to +140°F (-40°C to +60°C)


• Standards Compliance: Conforms to ANSI standards as well as NEMA WD-1 and WD-6 specifications
