Recessed Electric Wall-Mount Heater, Recessed or Surface, 3000/1500, 4000/2000 W, 208/240V AC

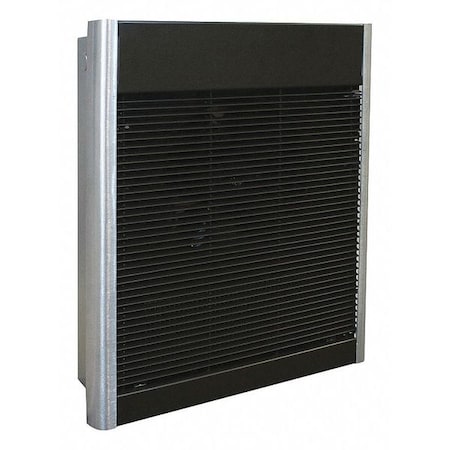

The QMARK AWH4404F is a recessed or surface-mount electric wall heater with fan-forced heating for warming rooms and open areas such as vestibules, hallways, stairwells, offices, and basements. It operates on 208/240V AC, single phase, and features an architectural tamper-resistant design with a bronze powder-coated steel grille and housing. The unit includes a built-in tamper-resistant thermostat, on/off switch, and automatic fan delay to help reduce cold air discharge at start-up and release remaining heat during shutdown.

Key Features of the QMARK AWH4404F Electric Wall Heater:

• Heating output: Field-convertible wattage of 1500/3000 W or 2000/4000 W with heating capacity of 5,118/6,824/10,236/13,649 BtuH.
• Airflow: Fan-forced operation moves air at 100 cfm with a 105 degrees F air temperature rise.
• Thermostat: Tamper-resistant unit-mounted thermostat with mechanical selector dial and double-pole contact type.
• Overheat protection: Manual reset thermal overheat protector disconnects power if airflow is blocked.
• Fan delay: Automatic fan delay operates on start-up and shutdown.
• Controls: Built-in on/off disconnect switch for servicing and maintenance.
• BMS compatibility: Compatible with building management systems through an optional relay.
• Construction: Steel housing and steel bar-stock grille with bronze powder-coated finish.
• Mounting: Designed for recessed or surface mounting in horizontal position; rough-in dimensions are 18-1/4 in H x 14-1/4 in W x 3-7/8 in D.
• Listing: cETL Listed.
