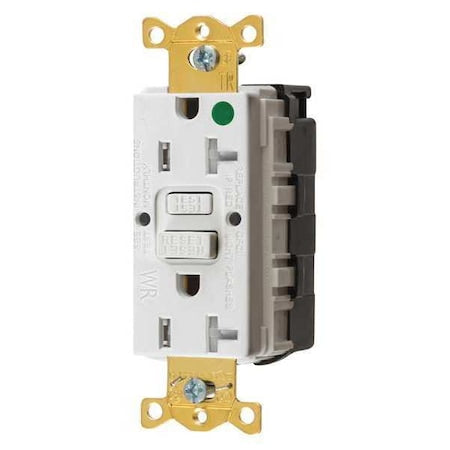

GFCI Rceptcle, Hspital, Wht, 20A, 1 HP

The HUBBELL GFCI Receptacle is a hospital grade, rated for commercial applications requiring ground fault protection. It features AUTOGUARD® self-test technology performs periodic monitoring of receptacle functionality and will disconnect power when specified conditions are met. The device includes tamper-resistant shutters; weather resistant construction, and visual indicators display status information including power presence and trip condition notifications.

Key Features of the HUBBELL GFCI Receptacle:

• Amperage/Voltage: Rated for 20A at 125V AC; supports up to 1 HP loads


• Grade: Hospital grade construction intended for demanding environments


• Self-Testing: Integrated AUTOGUARD® self-test function with a test cycle approximately every 30 seconds


• Tamper & Weather Resistant: Shutter design meets NEC requirements (TR406.12/WR406.9); housing provides UV and corrosion resistance


• NEMA Configuration: 5-20R decorator duplex outlet with flush mount installation


• Wiring Method: Modular back wiring accepts up to 12 AWG wire size


• Status Indicators: Visual indicators provide information on device operation including power presence and trip events


• Reverse Wiring Protection: Power denied to face or downstream if line/load connections are reversed


• Includes mounting hardware and wall plate; housing made from nylon material; grounded design with two poles and three wires
