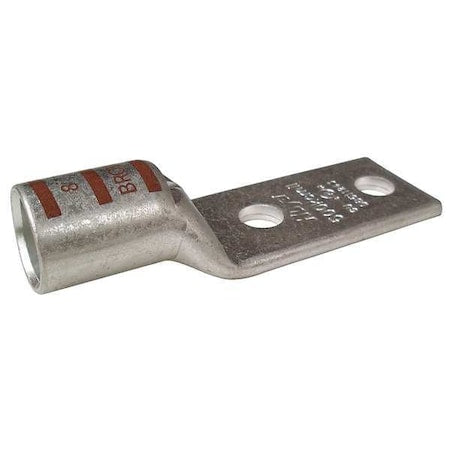

Two-Hole Compression Lug, 500 kcmil Max, 3/8 in Stud, Short Barrel, Copper, Brown

Two-Hole Compression Lug, 500 kcmil Max, 3/8 in Stud, Short Barrel, Copper, Brown

$14.30
$14.30
Skip to product information
Two-Hole Compression Lug, 500 kcmil Max, 3/8 in Stud, Short Barrel, Copper, Brown
  • Two-Hole Compression Lug, 500 kcmil Max, 3/8 in Stud, Short Barrel, Copper, Brown
  • Two-Hole Compression Lug, 500 kcmil Max, 3/8 in Stud, Short Barrel, Copper, Brown
Two-Hole Compression Lug, 500 kcmil Max, 3/8 in Stud, Short Barrel, Copper, Brown

Two-Hole Compression Lug, 500 kcmil Max, 3/8 in Stud, Short Barrel, Copper, Brown

$14.30
$14.30
Compression Lug, Barrel Size Standard, Color Code Brown, Die Code 87, Tongue Angle Straight, Tongue Width 1.61 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 2
