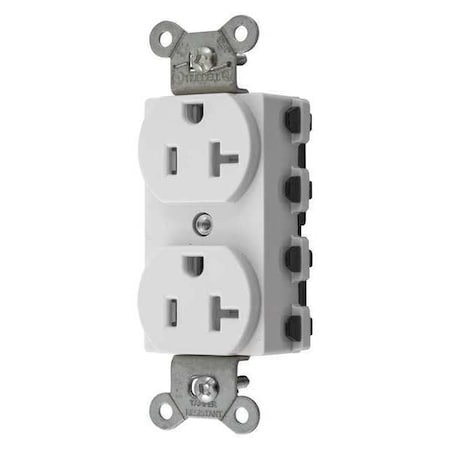

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

The HUBBELL SNAPConnect® 5-20R Receptacle is a 20 amp, 125V AC flush mount duplex outlet suitable for commercial applications. This modular device features a connectorized wiring method that allows for efficient installation and consistent connections by snapping the terminal into place during final assembly. The receptacle is tamper-resistant, constructed with a nylon housing, intended for indoor dry locations meeting specification grade requirements.

Key Features of the HUBBELL SNAPConnect® 5-20R Receptacle:

• Amperage/Voltage: Rated for 20 A, 125V AC operation


• NEMA Configuration: Standard duplex outlet with NEMA 5-20R configuration


• Mounting Type: Flush mount design for single-gang installations


• Wiring Method: Modular back-wired connection using SNAPConnect technology


• Tamper Resistant: Built-in tamper resistance feature


• Material: Nylon housing with brass contacts provides durability in commercial settings


• Standards Compliance: Certified to CSA C22.2 No.42, UL Listed to UL498, Federal Specification W-C-596, NEMA WD-6 compliant


• Operating Temperature Range: -40°F to 167°F (maximum continuous temperature of 75°C)


• Dielectric Strength: Withstands minimum of 2,000V dielectric voltage test
