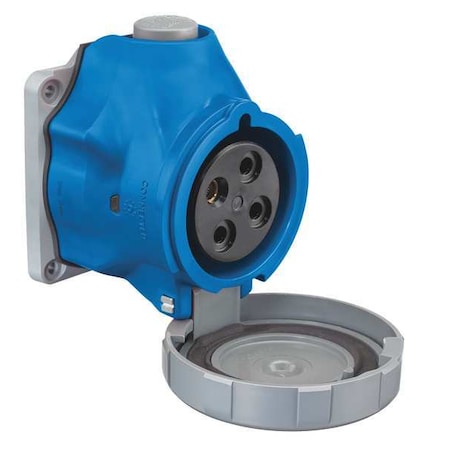

Pin & Sleeve Receptacle, 30 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X

The HUBBELL Advantage™ Series Pin and Sleeve Receptacle is a 30A, 250VAC electrical connector intended for industrial applications. This device is compatible with IEC 60309-2 pin and sleeve systems and rated as a switch-rated disconnecting means for motor circuits and branch circuits. Its compact design features a Valox 357 (polybutylene terephthalate) housing that withstands impact, corrosion, moisture, and extreme temperatures.

Key Features of the HUBBELL Advantage™ Series Pin & Sleeve Receptacle:

• Current/Voltage Rating: Rated for 30 amps at 250V AC; suitable for three-phase power distribution.


• Switch-Rated: Approved as a disconnecting means for both motor circuits and branch circuits.


• Construction: Valox 357 body with stainless steel hardware; shrouded spring-loaded cap enhances durability.


• NEMA/IP Ratings: NEMA Type 4X enclosure rating; IP67/IP69k style provide protection against water ingress, dust, and harsh conditions.


• Temperature Range: Operates from -40°C to +75°C; supports wire sizes from 12 AWG to 8 AWG via screw terminals.


• Power Indication: Equipped with power-indicating lights for visual status confirmation during operation.


• Circuit Compatibility: Mates with existing installed base of IEC 60309-2 devices; grounded per IEC standards with unswitched ground configuration.


• Certifications: UL Listed (File E146032), CSA Certified (LR285C); UL94 V-0 flammability rating ensures material performance under fire exposure conditions.
