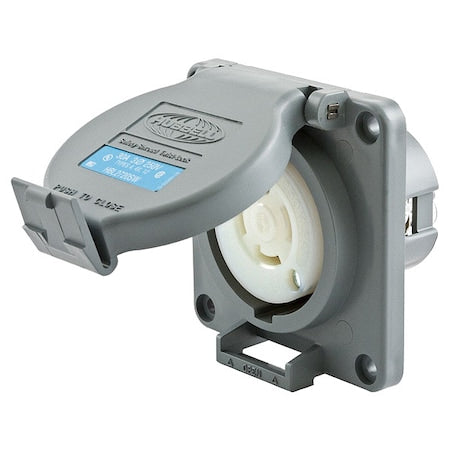

Watertight Flanged Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount

The HUBBELL 30A Watertight Twist-Lock Receptacle is a flanged locking receptacle.

The HUBBELL 30A Watertight Twist-Lock Receptacle is a flanged locking receptacle rated IP69K for water ingress protection in demanding environments. It features a high-impact thermoplastic housing and includes visual alignment indicators to assist with connection. This device supports three-phase power at 250V AC, rated for up to 30 amps, and includes an additional cover included for added protection during use.

Key Features of the HUBBELL 30A Watertight Flanged Locking Receptacle:

• Amperage/Voltage: Rated for 30 A and 250V AC, suitable for three-phase applications


• NEMA Configuration: L15-30R with straight connection orientation


• Watertight Construction: IP69K rating


• Material & Build: Reinforced nylon housing; brass contacts; gray Valox flange; clear polycarbonate retainer


• Cord/Wire Accommodation: Accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals


• Operating Temperature Range: -40°C to +75°C continuous operation without impact


• Mounting Type: Flush mount design with screw mounting hardware included


• Certifications & Standards: UL Listed, CSA Certified (Type 4, 4X, and Type 12 enclosures)


• Special Feature: Includes locking cover and shrouded construction for shrouded construction
