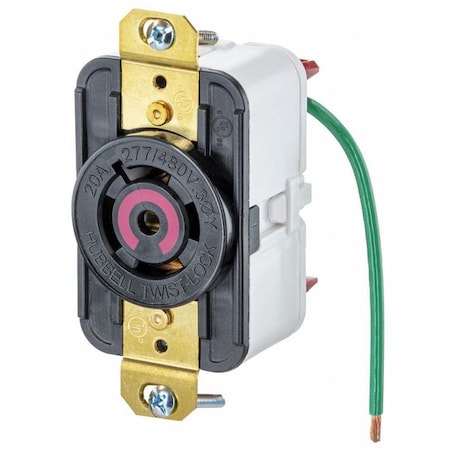

The HUBBELL Locking Receptacle is a 20A, three-phase wye, 277/480V AC twist-lock receptacle suitable for use in commercial and industrial settings. It features spring clamp terminals allow wire termination without the use of screwdrivers or torque wrenches. The device has a nylon housing with color-coded face aids in voltage identification and device alignment.



Key Features of the HUBBELL Locking Receptacle:


  • Amperage/Voltage: Rated for 20 A at 277/480V AC, three-phase

  • NEMA Configuration: L22-20R; polarized and grounded

  • Wire Connection Type: Spring clamp terminals support solid (14–10 AWG) and stranded (14–8 AWG) wires

  • Contact Material: Brass contacts used for conductivity

  • Housing Material: Impact-resistant nylon construction with black finish

  • Operating Temperature Range: -40°F to 167°F (-40°C to 75°C)

  • Mount Type: Flush mount; includes mounting strap and hardware

  • NEMA Enclosure Rating/IP Rating: NEMA 1 / IP20 rated for indoor use

  • Standards Compliance: Meets UL 498 and CSA C22.2 standards
