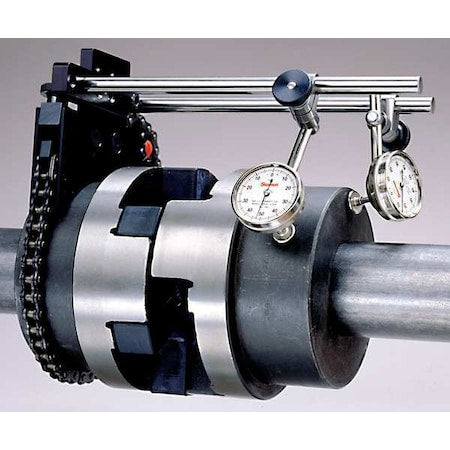

Alignment Clamp Set w/196B5 Indicator

The STARRETT S668CZ is a shaft alignment clamp set used for aligning motors, pumps, and compressors. It is designed to address radial and angular misalignment problems and includes two 196B5 dial indicators, two clamps, three stainless steel indicator posts, an extension plate, chain clamp, and a case. The clamps are made of anodized aluminum, and the heavy-duty steel roller chain fits shafts up to 7-1/2 inches in diameter.

Key Features:

• Application: Used for alignment of motors, pumps, and compressors, including radial and angular misalignment checks.
• Maximum Shaft Diameter: Accommodates shafts up to 7-1/2 in diameter.
• Clamp Material: Aluminum clamp construction with anodized finish.
• Chain Material: Steel roller chain wraps around the shaft for mounting.
• Included Indicators: Supplied with (2) Starrett 196B5 dial indicators.
• Indicator Type: Dial indicators with a balanced 0-50-0 reading.
• Dial Gauge Range: 0.2 in range with 0.1 in per revolution.
• Indicator Posts: Includes (3) stainless steel posts with 3/8 in diameter; post length listed as 9 in.
• Extension Plate: Provides added radial clearance during setup.
• Includes Case: Comes packed in a case for storage and transport.
