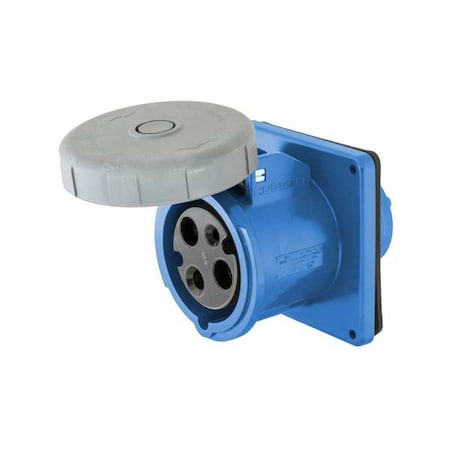

Watertight Pin & Sleeve Receptacle, 60 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue

The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device suitable for use in applications requiring up to 60A and 250V AC single-phase power in industrial environments. Rated for 60A and 250V AC, this single-phase receptacle features a flanged design with screw terminal connections, supporting wire sizes from #8 AWG to #2 AWG. Its construction utilizes Zytel 101 nylon and thermoplastic materials, providing impact resistance and moisture protection, as specified by the manufacturer.

Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:

• Current/Voltage Rating: Rated for 60 amps at 250V AC single phase


• Watertight Construction: IP67 ingress protection rating; includes neoprene gasket material


• Body Material: Zytel 101 nylon construction


• Cord Size Compatibility: Accepts wire sizes from #8 AWG to #2 AWG


• Connection Type: Pressure terminal screws provide secure connectivity


• Flange Type: Flanged mounting with screw hardware included


• Operating Temperature Range: -40°C to 75°C (continuous operation, non-impact conditions)


• Number of Poles/Wires: Two poles, three wires; grounded per IEC standards


• Coded Housing Color: Blue housing per IEC convention
