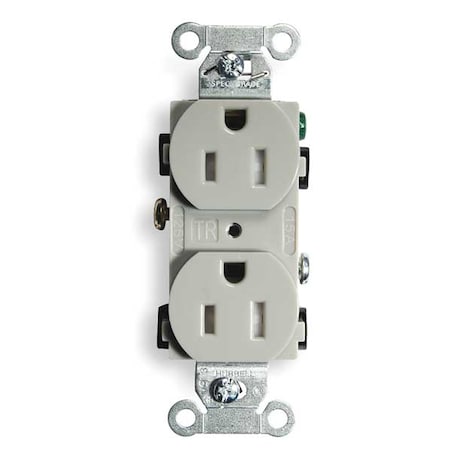

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R GY is a tamper-resistant electrical outlet rated for indoor use.

Key Features of the HUBBELL 15A Duplex Receptacle:

• Tamper Resistant: Built-in shutters are present on the receptacle.


• Material Construction: Nylon housing with brass triple wipe contacts and galvanized steel mounting strap.


• Mounting Type: Flush mount design; includes grounding staple and mounting hardware.


• NEMA Configuration: Standard NEMA 5-15R.


• Wire Accommodation: Accepts #14–#10 AWG copper stranded or solid conductors via screw terminals (back or side wiring).


• Electrical Ratings: Rated for 15A, 125V AC; withstands dielectric voltage of minimum 2,000V; maximum continuous operating temperature of 75°C (167°F), minimum -40°C (-40°F) without impact. Rated for 15 amps at 125 volts AC; see specifications for recommended applications.


• Certifications & Standards: UL Listed to UL498 File E2186, CSA Certified C22.2 No.42 file 285, meets WD-1 Heavy Duty and WD-6 requirements.
