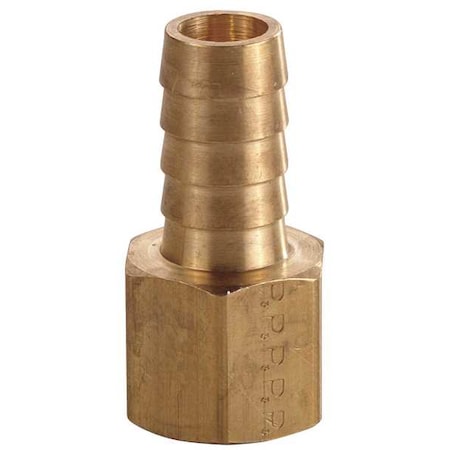

Hose Barb, 1/4 In Barb, 1/4 In FNPT, Brass

The ZORO SELECT - 6AFN5 Barbed Hose Fitting is a brass male-female fitting designed for use with low pressure pneumatic and water applications. This straight fitting connects via a hose barb on one end and has an NPT fitting on the other. The fitting is intended for a single-use application, facilitating a rigid movement (based on its design), and the hexagonal head requires a 5/8 in wrench for removal/installation. Reuse is not recommended. The specific pipe fitting shape is a barb and it's designed to handle a maximum pressure of up to 300 psi. Furthermore, this fitting is made of brass material grade C37700.

• - Connection Type: The fitting requires a Hose Barb x NPT for connection.
• - Barb Size: The barb size is 1/4 in.
• - Materials: Made from Brass x Brass.
• - Maximum Pressure: The item has been tested to withstand up to 300 psi.
• - Non-Reusable: The fitting is designed for single use, not recommended for reuse.
• - Shapes & Sizes: The fitting style is Straight, with a fitting size of 1/4 in x 1/4 in and for a hose I.D. of 1/4 in.
• - Hex Head Size: 5/8 in is the size of the hex head.
• -Thread Type & Size: The fitting has 1/4 in NPT type thread.
