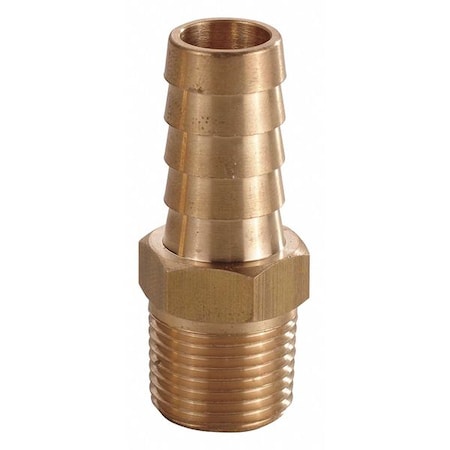

Hose Barb, 1/4 In Barb, 1/8 In MNPT, Brass

The ZORO SELECT - 6AFH3 is a Straight Barbed Hose Fitting for low pressure pneumatic and water applications. This Brass x Brass fitting lacks a shut-off feature and is non-reusable. It connects to a 1/4 in Hose I.D. and is rated for a maximum operating pressure up to 300 psi. A crimped or hose clamp type is required for fastening, providing a "Rigid" feature that prevents post-installation movement. The fitting has Hose Barb x NPT connections at both ends, accommodating a 1/4 in hose size at one end and a 1/8 in at the other.

Key Features:

• Application: Intended for use in Low Pressure Pneumatic and Water systems.
• Barb Size: Comes with a 1/4 in barb size for secure connection.
• Fitting Connection Type: Features a Hose Barb x NPT connection type.
• Fitting Shape & Style: Has a straight shape. The style may influence hose routing.
• Hex Head Size: Has a hexagonal head size of 7/16 in for tool interaction.
• Max. Pressure: Rated for a maximum operating pressure of up to 300 psi.
• Thread Size & Type: Comes with a 1/8 in Standard NPT (National Pipe Thread) for easy compatibility.
