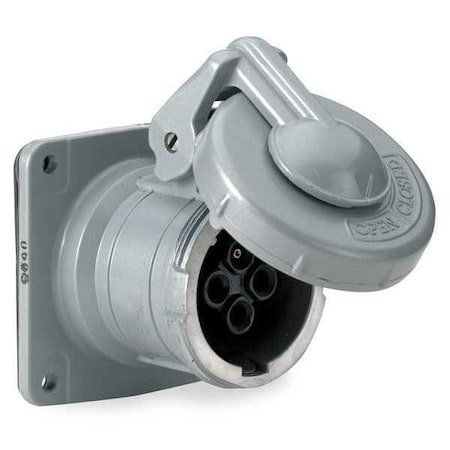

Watertight Pin & Sleeve Receptacle, 60 A, 600V AC/250V DC, Single Phase, 4 Pole, Style 1 Grounding

The HUBBELL Pin and Sleeve Receptacle, 60A, 600VAC is a watertight electrical device intended for industrial applications requiring connection and rated moisture resistance. It features a combination of metallic shrouding with a non-metallic Zytel 101 nylon housing to provide durability while maintaining resistance to environmental factors. The receptacle includes pressure terminal screws for connectivity and supports wire sizes from #8 AWG to #2 AWG, rated for operation up to 60 amps at 600 volts AC.

Key Features of the HUBBELL Pin & Sleeve Watertight Receptacle:

• Current/Voltage Rating: Rated for 60A and up to 600VAC/250VDC


• Watertight Construction: Neoprene sealing glands and spring-loaded gasketed cover; meets IP67/NEMA 4X requirements for moisture ingress protection


• Material Composition: Housing made from Zytel 101 nylon; flange is epoxy painted aluminum; bushing is aluminum; retainer is thermoset polyester


• Cord Size Compatibility: Accepts wire sizes from #8 AWG to #2 AWG (6–4 AWG cord size)


• Connection Type: Pressure terminal screws with straight orientation


• Grounding Style: Style 1 grounding with shrouded design


• Flammability Ratings: UL94 V0, UL94 HB, CSA C22.2 No.0.17 compliant materials


• Operating Temperature Range: -40°C to +75°C continuous operation


• Industry Standards: CSA Certified (C22.2 No.182.1), UL Listed Type 4X (UL1682), complies with applicable impact and moisture resistance standards


• Pole/Wire Configuration: Single phase, four poles, five wires configuration
