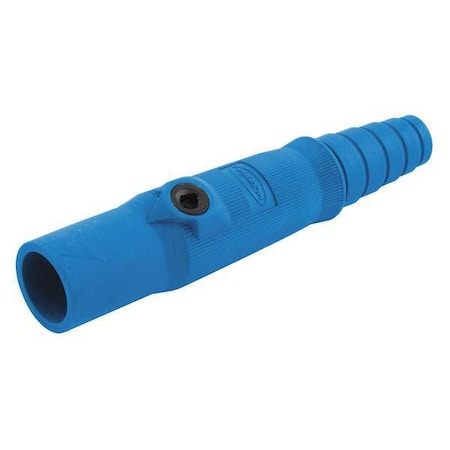

Single Pole Inline, 150 A, Male, Blue

The HUBBELL Connector, Series 15, is a single pole male connector intended for temporary electrical power distribution. It features a taper nose end and double set screw terminal connection, accommodating wire sizes from 8 AWG to 2 AWG. The housing is constructed from thermoplastic elastomer and includes an Insulgrip® style housing.

Key Features of the HUBBELL Connector, Series 15:

• Amperage/Voltage Rating: Rated for up to 150 A at 600V AC or 250V DC


• Cable Range: Accepts #8 to #2 AWG conductors


• Terminal Connection Type: Double set screw terminal connection


• Contact/Conductor Material: Brass contact/conductor material


• NEMA Enclosure Ratings: For use with NEMA Type 3R, 4X, and 12 enclosures


• Industry Standards: Complies with: ANSI/NFPA 70 (NEC), UL Listed, cUL Listed; UL1691 standard


• Compatible with Series: Compatible with Series 15 devices; Insulgrip compatible


• Overall Dimensions: Measures approximately 4.54 inches in length by 1 inch in width
