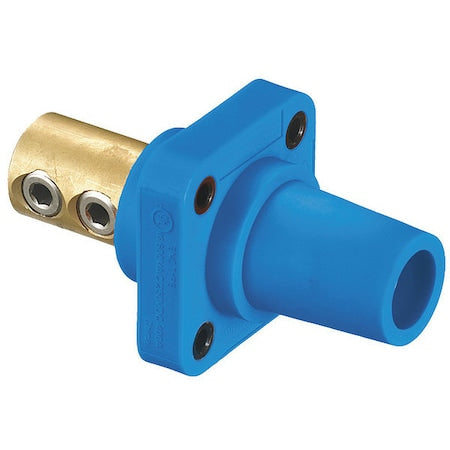

Receptacle, Female, Blu, 4-4/0, 400AC/DC

The HUBBELL Receptacle, Female, Blue, 4-4/0, 400AC/DC is a single pole panel mount receptacle rated for use in applications requiring up to 400 amps. It features a female double set screw terminal connection and is compatible with Series 16 devices. This receptacle is rated for operation at up to 400 amps, with voltage ratings of up to 600V AC or 250V DC. The housing is constructed from thermoplastic elastomer; intended for indoor dry locations unless otherwise protected.

Key Features of the HUBBELL Receptacle, Female, Blue, 4-4/0, 400AC/DC:

• Amperage Rating: Rated for up to 400 A (AC/DC)


• Voltage Rating: Supports up to 600V AC or 250V DC


• Cable Range: Accepts wire sizes from #4 AWG to #4/0 AWG


• Terminal Connection Type: Double set screw terminals


• Mounting Style: Panel mount with through hole mounting hardware


• NEMA Enclosure Ratings: Suitable for NEMA Types 12K, 3R, and 4X enclosures


• Contact Material: Brass contacts provide reliable conductivity


• Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed/cUL Listed requirements; UL Enclosure Types 3R/4X/12 compliant
