IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw

IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw

$182.96
$182.96
Skip to product information
IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw
  • IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw
  • IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw
IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw

IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw

$182.96
$182.96

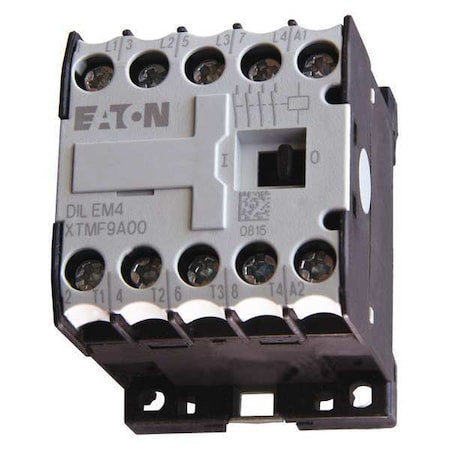

The Eaton XT IEC mini contactor is an IEC miniature magnetic contactor with four poles and a 24 V DC coil. It is rated for operation with non-reversing action and uses screw terminals, with no auxiliary contacts. The XT series is UL Listed, CSA Certified, CE Marked, EN 60947, IEC 60947, and RoHS certified.

- Coil Voltage: 24 V DC

  • - Action: Non-Reversing
  • - Poles: 4
  • - Amperage Rating: 8.80 A
  • - Auxiliary Contacts: No Auxiliary Contacts
  • - Termination: Screw Terminals
  • - Embedded Surge Suppressor: Yes
  • - IP Rating: IP20
  • - Mounting Style: DIN Rail, Panel
  • - Mounting Position: Vertical
  • - Frame Size / Series: Frame A / XT
  • - Maximum Voltage Rating: Rated for use within voltage ranges up to 690V AC/DC
  • - Product Dimensions: Width 1.77 in; Height 1.5 in; Depth 2 in
  • - Certifications: UL Listed; CSA Certified; CE Marked; EN 60947; IEC 60947; RoHS
    •
