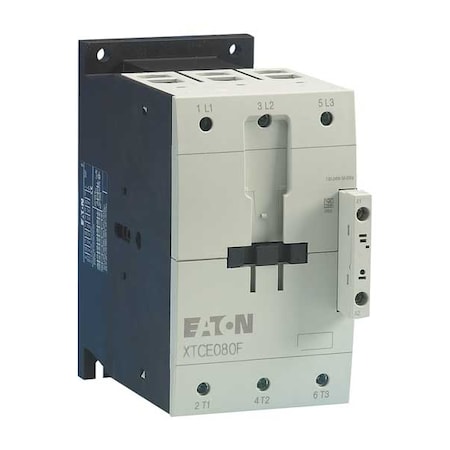

IEC Magnetic Contactor, No Auxiliary Contacts, 480V AC, 3 P, Non-Reversing, Screw

The Eaton XT IEC contactor is a three-pole, non-reversing IEC magnetic contactor (Frame F) with a 480 V AC coil. It uses screw terminals, has no auxiliary contacts, and is rated for operation up to 690 V AC. The unit includes a built-in surge suppressor and is compatible with DIN Rail and panel mounting methods. It is rated for 50/60 Hz operation and specified to operate within the temperature range of -13°F to 122°F. Dimensions are 3.54 in wide, 6.69 in high, and 5.59 in deep. It complies with applicable standards including UL, CSA, CE, EN 60947, IEC 60947; rated IP20 without enclosure.

Key features:

• - Poles and action: 3 poles; Non-Reversing
• - Coil voltage: 480 V AC; Frequency: 50/60 Hz
• - Amperage ratings: Full-load inductive 95 A; Resistive 130 A
• - Auxiliary contacts: No auxiliary contacts (0 NO/0 NC)
• - Electrical connections: Screw terminals
• - Mounting: DIN Rail, Panel; Frame Size: F; Dimensions: 3.54 in W x 6.69 in H x 5.59 in D
• - Enclosure/IP rating: No enclosure; IP20
• - Maximum voltage: 690 V AC
• - Certifications: UL Listed; CSA Certified; CE Marked; EN 60947; IEC 60947
• - Durability: Mechanical 10,000,000 cycles; Electrical operating durability 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)
• - Series: XT
